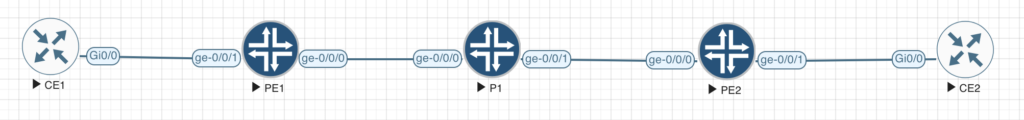

Yes it’s another EVPN VPWS lab but this time it’s with SRv6 so no MPLS involved. A couple of vjunos-router devices are running SRv6 and as usual, 2 Cisco devices are CEs.

https://www.juniper.net/documentation/us/en/software/junos/evpn/topics/concept/configuring-vpws-srv6.html

PE1

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family inet6 address fd2c:8b41:3e9a:1c4d::1/64
set interfaces ge-0/0/1 vlan-tagging
set interfaces ge-0/0/1 encapsulation flexible-ethernet-services
set interfaces ge-0/0/1 unit 12 encapsulation vlan-ccc
set interfaces ge-0/0/1 unit 12 vlan-id 12
set interfaces lo0 unit 0 family iso address 49.0000.5555.0000.0000.00
set interfaces lo0 unit 0 family inet6 address fd7e:9c21:ab04:77d1:8a2f:3c91:5e44:1baf/128
set policy-options policy-statement NHS then next-hop self
set routing-instances EVPN instance-type evpn-vpws
set routing-instances EVPN protocols evpn interface ge-0/0/1.12 vpws-service-id local 12
set routing-instances EVPN protocols evpn interface ge-0/0/1.12 vpws-service-id remote 21
set routing-instances EVPN protocols evpn interface ge-0/0/1.12 vpws-service-id source-packet-routing srv6 locator LOC1
set routing-instances EVPN protocols evpn interface ge-0/0/1.12 vpws-service-id source-packet-routing srv6 locator end-dx2-sid 4002:ac8:a1:2:101::
set routing-instances EVPN protocols evpn encapsulation srv6
set routing-instances EVPN interface ge-0/0/1.12
set routing-instances EVPN route-distinguisher 5.5.5.5:12
set routing-instances EVPN vrf-target target:65400:12
set routing-options source-packet-routing srv6 locator LOC1 4002:ac8:a1:2::/64
set routing-options resolution preserve-nexthop-hierarchy
set routing-options router-id 5.5.5.5
set routing-options autonomous-system 65400
set routing-options ipv6-router-id fd00::1
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address fd7e:9c21:ab04:77d1:8a2f:3c91:5e44:1baf
set protocols bgp group EVPN family evpn signaling advertise-srv6-service
set protocols bgp group EVPN family evpn signaling accept-srv6-service
set protocols bgp group EVPN export NHS
set protocols bgp group EVPN neighbor fdc1:55aa:9e02:4b90:dead:beef:cafe:1234
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface lo0.0 passive
set protocols isis source-packet-routing srv6 locator LOC1
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only

PE2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family inet6 address fd2c:8b41:3e9a:1c4d::10/64
set interfaces ge-0/0/1 vlan-tagging
set interfaces ge-0/0/1 encapsulation flexible-ethernet-services
set interfaces ge-0/0/1 unit 12 encapsulation vlan-ccc
set interfaces ge-0/0/1 unit 12 vlan-id 12
set interfaces lo0 unit 0 family iso address 49.0000.6666.0000.0000.00
set interfaces lo0 unit 0 family inet6 address fdc1:55aa:9e02:4b90:dead:beef:cafe:1234/128
set policy-options policy-statement NHS then next-hop self
set routing-instances EVPN instance-type evpn-vpws
set routing-instances EVPN protocols evpn interface ge-0/0/1.12 vpws-service-id local 21
set routing-instances EVPN protocols evpn interface ge-0/0/1.12 vpws-service-id remote 12
set routing-instances EVPN protocols evpn interface ge-0/0/1.12 vpws-service-id source-packet-routing srv6 locator LOC1
set routing-instances EVPN protocols evpn interface ge-0/0/1.12 vpws-service-id source-packet-routing srv6 locator end-dx2-sid 4002:ac8:a1:3:101::
set routing-instances EVPN protocols evpn encapsulation srv6
set routing-instances EVPN interface ge-0/0/1.12
set routing-instances EVPN route-distinguisher 6.6.6.6:12
set routing-instances EVPN vrf-target target:65400:12
set routing-options source-packet-routing srv6 locator LOC1 4002:ac8:a1:3::/64
set routing-options resolution preserve-nexthop-hierarchy
set routing-options router-id 6.6.6.6
set routing-options autonomous-system 65400
set routing-options ipv6-router-id fd00::2
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address fdc1:55aa:9e02:4b90:dead:beef:cafe:1234
set protocols bgp group EVPN family evpn signaling advertise-srv6-service
set protocols bgp group EVPN family evpn signaling accept-srv6-service
set protocols bgp group EVPN export NHS
set protocols bgp group EVPN neighbor fd7e:9c21:ab04:77d1:8a2f:3c91:5e44:1baf
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface lo0.0 passive
set protocols isis source-packet-routing srv6 locator LOC1
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only

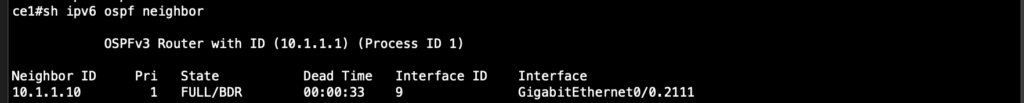

OSPFv3 has been configured on the Cisco devices

This is a slight variation on a standard LDP Layer 2 circuit. Segment Routing is used for the transport labels and LDP is only running on the loopbacks of both PEs. vJunos-router is used for the lab.

https://www.juniper.net/documentation/us/en/software/junos/vpn-l2/topics/concept/vpn-layer-2-circuit-overview.html

PE1

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 vlan-tagging
set interfaces ge-0/0/0 encapsulation flexible-ethernet-services
set interfaces ge-0/0/0 unit 512 encapsulation vlan-ccc
set interfaces ge-0/0/0 unit 512 vlan-id 512
set interfaces ge-0/0/2 unit 0 family inet address 1.1.1.1/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 5.5.5.5/32
set interfaces lo0 unit 0 family iso address 49.0000.5555.5555.5555.00
set interfaces lo0 unit 0 family mpls
set protocols isis interface ge-0/0/2.0 point-to-point
set protocols isis interface lo0.0 point-to-point
set protocols isis source-packet-routing srgb start-label 800000
set protocols isis source-packet-routing srgb index-range 9000
set protocols isis source-packet-routing node-segment ipv4-index 500
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols l2circuit neighbor 8.8.8.8 interface ge-0/0/0.512 virtual-circuit-id 3
set protocols ldp interface lo0.0
set protocols ldp neighbor 8.8.8.8
set protocols mpls interface ge-0/0/2.0
set protocols mpls interface lo0.0

P1

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 1.1.1.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 2.2.2.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 6.6.6.6/32
set interfaces lo0 unit 0 family iso address 49.0000.6666.6666.6666.00
set interfaces lo0 unit 0 family mpls
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface lo0.0 point-to-point
set protocols isis source-packet-routing srgb start-label 800000
set protocols isis source-packet-routing srgb index-range 9000
set protocols isis source-packet-routing node-segment ipv4-index 501
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface lo0.0
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0

P2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 2.2.2.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 3.3.3.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 33.33.33.33/32
set interfaces lo0 unit 0 family iso address 49.0000.3333.3333.0000.00
set interfaces lo0 unit 0 family mpls
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface lo0.0 point-to-point
set protocols isis source-packet-routing srgb start-label 800000
set protocols isis source-packet-routing srgb index-range 9000
set protocols isis source-packet-routing node-segment ipv4-index 502
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0

P3

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 3.3.3.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 4.4.4.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 7.7.7.7/32
set interfaces lo0 unit 0 family iso address 49.0000.7777.7777.7777.00
set interfaces lo0 unit 0 family mpls
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface lo0.0 point-to-point
set protocols isis source-packet-routing srgb start-label 800000
set protocols isis source-packet-routing srgb index-range 9000
set protocols isis source-packet-routing node-segment ipv4-index 503
set protocols isis level 2 wide-metrics-only
set protocols isis level 1 disable
set protocols mpls interface lo0.0
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0

PE2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 vlan-tagging
set interfaces ge-0/0/0 encapsulation flexible-ethernet-services
set interfaces ge-0/0/0 unit 512 encapsulation vlan-ccc
set interfaces ge-0/0/0 unit 512 vlan-id 512
set interfaces ge-0/0/2 unit 0 family inet address 4.4.4.2/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 8.8.8.8/32
set interfaces lo0 unit 0 family iso address 49.0000.8888.8888.8888.00
set interfaces lo0 unit 0 family mpls
set protocols isis interface ge-0/0/2.0 point-to-point
set protocols isis interface lo0.0 point-to-point
set protocols isis source-packet-routing srgb start-label 800000
set protocols isis source-packet-routing srgb index-range 9000
set protocols isis source-packet-routing node-segment ipv4-index 504
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols l2circuit neighbor 5.5.5.5 interface ge-0/0/0.512 virtual-circuit-id 3
set protocols ldp interface lo0.0
set protocols ldp neighbor 5.5.5.5
set protocols mpls interface ge-0/0/2.0
set protocols mpls interface lo0.0

As usual, OSPF has been configured on the 2 Cisco CE devices

We have already done a lab with IS-IS and Unnumbered Interfaces so with this lab we will do the same but with OSPF instead of IS-IS.

The lab is EVPN E-Tree on Junos Evolved. New York is the Head Office (root) and the other sites are satellites (leaves).

https://www.juniper.net/documentation/us/en/software/junos/evpn/topics/concept/evpn-etree-overview.html

PE1

set system host-name pe1
set interfaces et-0/0/0 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/0 unit 0 family iso
set interfaces et-0/0/0 unit 0 family mpls
set interfaces et-0/0/1 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/1 unit 0 family iso
set interfaces et-0/0/1 unit 0 family mpls
set interfaces et-0/0/2 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/2 unit 0 family iso
set interfaces et-0/0/2 unit 0 family mpls
set interfaces et-0/0/3 flexible-vlan-tagging
set interfaces et-0/0/3 encapsulation flexible-ethernet-services
set interfaces et-0/0/3 unit 202 encapsulation vlan-bridge
set interfaces et-0/0/3 unit 202 vlan-id 202
set interfaces et-0/0/3 unit 202 etree-ac-role root
set interfaces lo0 unit 0 family inet address 5.5.5.5/32
set interfaces lo0 unit 0 family iso address 49.0000.5555.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-instances NEWYORK instance-type mac-vrf
set routing-instances NEWYORK protocols evpn evpn-etree
set routing-instances NEWYORK service-type vlan-aware
set routing-instances NEWYORK interface et-0/0/3.202
set routing-instances NEWYORK route-distinguisher 5.5.5.5:202
set routing-instances NEWYORK vrf-target target:65400:202
set routing-instances NEWYORK vlans NY202 vlan-id 202
set routing-instances NEWYORK vlans NY202 interface et-0/0/3.202
set routing-options router-id 5.5.5.5
set routing-options autonomous-system 65400
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address 5.5.5.5
set protocols bgp group EVPN family evpn signaling
set protocols bgp group EVPN neighbor 9.9.9.9
set protocols mpls interface et-0/0/0.0
set protocols mpls interface et-0/0/1.0
set protocols mpls interface lo0.0
set protocols ospf source-packet-routing node-segment ipv4-index 600
set protocols ospf source-packet-routing srgb start-label 70000
set protocols ospf source-packet-routing srgb index-range 1000
set protocols ospf area 0.0.0.0 interface et-0/0/1.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface et-0/0/0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface et-0/0/2.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface lo0.0 passive

PE2

set system host-name pe2
set interfaces et-0/0/0 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/0 unit 0 family iso
set interfaces et-0/0/0 unit 0 family mpls
set interfaces et-0/0/1 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/1 unit 0 family iso
set interfaces et-0/0/1 unit 0 family mpls
set interfaces et-0/0/2 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/2 unit 0 family iso
set interfaces et-0/0/2 unit 0 family mpls
set interfaces et-0/0/3 flexible-vlan-tagging
set interfaces et-0/0/3 encapsulation flexible-ethernet-services
set interfaces et-0/0/3 unit 202 encapsulation vlan-bridge
set interfaces et-0/0/3 unit 202 vlan-id 202
set interfaces et-0/0/3 unit 202 etree-ac-role leaf
set interfaces lo0 unit 0 family inet address 6.6.6.6/32
set interfaces lo0 unit 0 family iso address 49.0000.6666.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-instances NEWYORK instance-type mac-vrf
set routing-instances NEWYORK protocols evpn evpn-etree
set routing-instances NEWYORK service-type vlan-aware
set routing-instances NEWYORK interface et-0/0/3.202
set routing-instances NEWYORK route-distinguisher 6.6.6.6:202
set routing-instances NEWYORK vrf-target target:65400:202
set routing-instances NEWYORK vlans NY202 vlan-id 202
set routing-instances NEWYORK vlans NY202 interface et-0/0/3.202
set routing-options router-id 6.6.6.6
set routing-options autonomous-system 65400
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address 6.6.6.6
set protocols bgp group EVPN family evpn signaling
set protocols bgp group EVPN neighbor 9.9.9.9
set protocols mpls interface et-0/0/0.0
set protocols mpls interface et-0/0/1.0
set protocols mpls interface lo0.0
set protocols ospf source-packet-routing node-segment ipv4-index 601
set protocols ospf source-packet-routing srgb start-label 70000
set protocols ospf source-packet-routing srgb index-range 1000
set protocols ospf area 0.0.0.0 interface et-0/0/1.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface et-0/0/0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface et-0/0/2.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface lo0.0 passive

PE3

set system host-name pe3
set interfaces et-0/0/0 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/0 unit 0 family iso
set interfaces et-0/0/0 unit 0 family inet6
set interfaces et-0/0/0 unit 0 family mpls
set interfaces et-0/0/1 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/1 unit 0 family iso
set interfaces et-0/0/1 unit 0 family inet6
set interfaces et-0/0/1 unit 0 family mpls
set interfaces et-0/0/2 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/2 unit 0 family iso
set interfaces et-0/0/2 unit 0 family inet6
set interfaces et-0/0/2 unit 0 family mpls
set interfaces et-0/0/3 flexible-vlan-tagging
set interfaces et-0/0/3 encapsulation flexible-ethernet-services
set interfaces et-0/0/3 unit 202 encapsulation vlan-bridge
set interfaces et-0/0/3 unit 202 vlan-id 202
set interfaces et-0/0/3 unit 202 etree-ac-role leaf
set interfaces lo0 unit 0 family inet address 7.7.7.7/32
set interfaces lo0 unit 0 family iso address 49.0000.7777.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-instances NEWYORK instance-type mac-vrf
set routing-instances NEWYORK protocols evpn evpn-etree
set routing-instances NEWYORK service-type vlan-aware
set routing-instances NEWYORK interface et-0/0/3.202
set routing-instances NEWYORK route-distinguisher 7.7.7.7:202
set routing-instances NEWYORK vrf-target target:65400:202
set routing-instances NEWYORK vlans NY202 vlan-id 202
set routing-instances NEWYORK vlans NY202 interface et-0/0/3.202
set routing-options router-id 7.7.7.7
set routing-options autonomous-system 65400
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address 7.7.7.7
set protocols bgp group EVPN family evpn signaling
set protocols bgp group EVPN neighbor 9.9.9.9
set protocols mpls interface et-0/0/0.0
set protocols mpls interface et-0/0/1.0
set protocols mpls interface lo0.0
set protocols ospf source-packet-routing node-segment ipv4-index 602
set protocols ospf source-packet-routing srgb start-label 70000
set protocols ospf source-packet-routing srgb index-range 1000
set protocols ospf area 0.0.0.0 interface et-0/0/1.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface et-0/0/0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface et-0/0/2.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface lo0.0 passive

PE4

set system host-name pe4
set interfaces et-0/0/0 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/0 unit 0 family iso
set interfaces et-0/0/0 unit 0 family mpls
set interfaces et-0/0/1 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/1 unit 0 family iso
set interfaces et-0/0/1 unit 0 family mpls
set interfaces et-0/0/2 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/2 unit 0 family iso
set interfaces et-0/0/2 unit 0 family mpls
set interfaces et-0/0/3 flexible-vlan-tagging
set interfaces et-0/0/3 encapsulation flexible-ethernet-services
set interfaces et-0/0/3 unit 202 encapsulation vlan-bridge
set interfaces et-0/0/3 unit 202 vlan-id 202
set interfaces et-0/0/3 unit 202 etree-ac-role leaf
set interfaces lo0 unit 0 family inet address 8.8.8.8/32
set interfaces lo0 unit 0 family iso address 49.0000.8888.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-instances NEWYORK instance-type mac-vrf
set routing-instances NEWYORK protocols evpn evpn-etree
set routing-instances NEWYORK service-type vlan-aware
set routing-instances NEWYORK interface et-0/0/3.202
set routing-instances NEWYORK route-distinguisher 8.8.8.8:202
set routing-instances NEWYORK vrf-target target:65400:202
set routing-instances NEWYORK vlans NY202 vlan-id 202
set routing-instances NEWYORK vlans NY202 interface et-0/0/3.202
set routing-options router-id 8.8.8.8
set routing-options autonomous-system 65400
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address 8.8.8.8
set protocols bgp group EVPN family evpn signaling
set protocols bgp group EVPN neighbor 9.9.9.9
set protocols mpls interface et-0/0/0.0
set protocols mpls interface et-0/0/1.0
set protocols mpls interface lo0.0
set protocols ospf source-packet-routing node-segment ipv4-index 603
set protocols ospf source-packet-routing srgb start-label 70000
set protocols ospf source-packet-routing srgb index-range 1000
set protocols ospf area 0.0.0.0 interface et-0/0/0.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface et-0/0/1.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface et-0/0/2.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface lo0.0 passive

RR

set system host-name rr
set interfaces et-0/0/0 unit 0 family inet
set interfaces et-0/0/1 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/1 unit 0 family iso
set interfaces et-0/0/1 unit 0 family mpls
set interfaces et-0/0/2 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/2 unit 0 family iso
set interfaces et-0/0/2 unit 0 family mpls
set interfaces et-0/0/3 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/3 unit 0 family iso
set interfaces et-0/0/3 unit 0 family mpls
set interfaces et-0/0/4 unit 0 family inet unnumbered-address lo0.0
set interfaces et-0/0/4 unit 0 family iso
set interfaces et-0/0/4 unit 0 family mpls
set interfaces et-0/0/6 unit 0 family inet
set interfaces et-0/0/8 unit 0 family inet
set interfaces et-0/0/9 unit 0 family inet
set interfaces et-0/0/10 unit 0 family inet
set interfaces et-0/0/11 unit 0 family inet
set interfaces lo0 unit 0 family inet address 9.9.9.9/32
set interfaces lo0 unit 0 family iso address 49.0000.9999.0000.0000.00
set routing-options resolution rib bgp.evpn.0 resolution-ribs inet.0
set routing-options router-id 9.9.9.9
set routing-options autonomous-system 65400
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address 9.9.9.9
set protocols bgp group EVPN family evpn signaling
set protocols bgp group EVPN cluster 9.9.9.9
set protocols bgp group EVPN neighbor 5.5.5.5
set protocols bgp group EVPN neighbor 7.7.7.7
set protocols bgp group EVPN neighbor 6.6.6.6
set protocols bgp group EVPN neighbor 8.8.8.8
set protocols ospf area 0.0.0.0 interface et-0/0/1.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface et-0/0/2.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface et-0/0/3.0 interface-type p2p
set protocols ospf area 0.0.0.0 interface et-0/0/4.0 interface-type p2p

OSPF has been configured on all the CE devices and New York will have 3 neighbours. The other sites will only be neighbours with New York.

It’s been a while since a new lab was posted so let’s get back to it.

This lab is Segment Routing EVPN VPWS with IS-IS as the IGP but with a slight twist. None of the physical interfaces have an IP address and they borrow their IP from the Loopback. The below article explains the concept in more detail.

IS-IS and Unnumbered Ethernet Interfaces in Junos

PE1

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces ge-0/0/3 vlan-tagging
set interfaces ge-0/0/3 encapsulation flexible-ethernet-services
set interfaces ge-0/0/3 unit 67 encapsulation vlan-ccc
set interfaces ge-0/0/3 unit 67 vlan-id 67
set interfaces lo0 unit 0 family inet address 5.5.5.5/32
set interfaces lo0 unit 0 family iso address 49.0000.5555.0000.0000.00
set routing-instances EVPN instance-type evpn-vpws
set routing-instances EVPN protocols evpn interface ge-0/0/3.67 vpws-service-id local 67
set routing-instances EVPN protocols evpn interface ge-0/0/3.67 vpws-service-id remote 76
set routing-instances EVPN interface ge-0/0/3.67
set routing-instances EVPN route-distinguisher 5.5.5.5:67
set routing-instances EVPN vrf-target target:65400:67
set routing-options router-id 5.5.5.5
set routing-options autonomous-system 65400
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address 5.5.5.5
set protocols bgp group EVPN family evpn signaling
set protocols bgp group EVPN neighbor 9.9.9.9
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface ge-0/0/2.0 point-to-point
set protocols isis interface lo0.0
set protocols isis source-packet-routing srgb start-label 80000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 50
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface ge-0/0/2.0
set protocols mpls interface lo0.0

PE2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 6.6.6.6/32
set interfaces lo0 unit 0 family iso address 49.0000.6666.0000.0000.00
set routing-options router-id 6.6.6.6
set routing-options autonomous-system 65400
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface ge-0/0/2.0 point-to-point
set protocols isis interface lo0.0
set protocols isis source-packet-routing srgb start-label 80000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 60
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface ge-0/0/2.0
set protocols mpls interface lo0.0

PE3

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces ge-0/0/3 vlan-tagging
set interfaces ge-0/0/3 encapsulation flexible-ethernet-services
set interfaces ge-0/0/3 unit 67 encapsulation vlan-ccc
set interfaces ge-0/0/3 unit 67 vlan-id 67
set interfaces lo0 unit 0 family inet address 7.7.7.7/32
set interfaces lo0 unit 0 family iso address 49.0000.7777.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-instances EVPN instance-type evpn-vpws
set routing-instances EVPN protocols evpn interface ge-0/0/3.67 vpws-service-id local 76
set routing-instances EVPN protocols evpn interface ge-0/0/3.67 vpws-service-id remote 67
set routing-instances EVPN interface ge-0/0/3.67
set routing-instances EVPN route-distinguisher 7.7.7.7:67
set routing-instances EVPN vrf-target target:65400:67
set routing-options router-id 7.7.7.7
set routing-options autonomous-system 65400
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address 7.7.7.7
set protocols bgp group EVPN family evpn signaling
set protocols bgp group EVPN neighbor 9.9.9.9
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface ge-0/0/2.0 point-to-point
set protocols isis interface lo0.0 passive
set protocols isis source-packet-routing srgb start-label 80000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 70
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0

PE4

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 8.8.8.8/32
set interfaces lo0 unit 0 family iso address 49.0000.8888.0000.0000.00
set interfaces lo0 unit 0 family mpls
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface ge-0/0/2.0 point-to-point
set protocols isis interface lo0.0
set protocols isis source-packet-routing srgb start-label 80000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 80
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0

RR

set chassis network-services enhanced-ip
set interfaces ge-0/0/1 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/2 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/3 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/3 unit 0 family iso
set interfaces ge-0/0/4 unit 0 family inet unnumbered-address lo0.0
set interfaces ge-0/0/4 unit 0 family iso
set interfaces lo0 unit 0 family inet address 9.9.9.9/32
set interfaces lo0 unit 0 family iso address 49.0000.9999.0000.0000.00
set routing-options resolution rib bgp.evpn.0 resolution-ribs inet.0
set routing-options router-id 9.9.9.9
set routing-options autonomous-system 65400
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address 9.9.9.9
set protocols bgp group EVPN family evpn signaling
set protocols bgp group EVPN cluster 9.9.9.9
set protocols bgp group EVPN neighbor 5.5.5.5
set protocols bgp group EVPN neighbor 7.7.7.7
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface ge-0/0/2.0 point-to-point
set protocols isis interface ge-0/0/3.0 point-to-point
set protocols isis interface ge-0/0/4.0 point-to-point
set protocols isis interface lo0.0
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only

As usual, 2 Cisco devices have been used as CEs with OSPF configured on both.

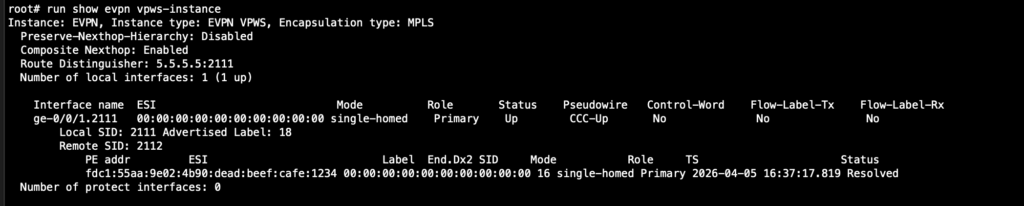

Confirmation of VPWS instance.

Junos Evolved is used for this lab. Commands are pretty much identical to standard Junos.

LSPs have been created between PE1 & PE3. The PE1 LSP goes through PE4 & the PE3 LSP through PE2. IS-IS is the IGP and an out of data path Route Reflector is used to reflect the relevant routes.

https://community.juniper.net/blogs/suneesh-babu/2022/11/05/evpn-vpws-validation-on-acx7000

PE1

set interfaces et-0/0/0 unit 0 family inet address 1.1.1.1/30
set interfaces et-0/0/0 unit 0 family iso
set interfaces et-0/0/0 unit 0 family mpls
set interfaces et-0/0/1 unit 0 family inet address 4.4.4.2/30
set interfaces et-0/0/1 unit 0 family iso
set interfaces et-0/0/1 unit 0 family mpls
set interfaces et-0/0/2 unit 0 family inet address 1.2.2.1/30
set interfaces et-0/0/2 unit 0 family iso
set interfaces et-0/0/3 vlan-tagging
set interfaces et-0/0/3 encapsulation flexible-ethernet-services
set interfaces et-0/0/3 unit 3232 encapsulation vlan-ccc
set interfaces et-0/0/3 unit 3232 vlan-id 3232
set interfaces lo0 unit 0 family inet address 5.5.5.5/32
set interfaces lo0 unit 0 family iso address 49.0000.5555.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-instances EVPN instance-type evpn-vpws
set routing-instances EVPN protocols evpn interface et-0/0/3.3232 vpws-service-id local 32
set routing-instances EVPN protocols evpn interface et-0/0/3.3232 vpws-service-id remote 33
set routing-instances EVPN interface et-0/0/3.3232
set routing-instances EVPN route-distinguisher 5.5.5.5:3232
set routing-instances EVPN vrf-target target:65400:3232
set routing-options router-id 5.5.5.5
set routing-options autonomous-system 65400
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address 5.5.5.5
set protocols bgp group EVPN family evpn signaling
set protocols bgp group EVPN neighbor 9.9.9.9
set protocols isis interface et-0/0/0.0 point-to-point
set protocols isis interface et-0/0/1.0 point-to-point
set protocols isis interface et-0/0/2.0 point-to-point
set protocols isis interface lo0.0 passive
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls label-switched-path PE3 to 7.7.7.7
set protocols mpls label-switched-path PE3 primary PE3
set protocols mpls path PE3 8.8.8.8 strict
set protocols mpls interface et-0/0/0.0
set protocols mpls interface et-0/0/1.0
set protocols mpls interface lo0.0
set protocols rsvp interface et-0/0/0.0
set protocols rsvp interface et-0/0/1.0
set protocols rsvp interface lo0.0

PE2

set interfaces et-0/0/0 unit 0 family inet address 1.1.1.2/30
set interfaces et-0/0/0 unit 0 family iso
set interfaces et-0/0/0 unit 0 family mpls
set interfaces et-0/0/1 unit 0 family inet address 2.2.2.1/30
set interfaces et-0/0/1 unit 0 family iso
set interfaces et-0/0/1 unit 0 family mpls
set interfaces et-0/0/2 unit 0 family inet address 1.3.3.1/30
set interfaces et-0/0/2 unit 0 family iso
set interfaces lo0 unit 0 family inet address 6.6.6.6/32
set interfaces lo0 unit 0 family iso address 49.0000.6666.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 6.6.6.6
set routing-options autonomous-system 65400
set protocols isis interface et-0/0/0.0 point-to-point
set protocols isis interface et-0/0/1.0 point-to-point
set protocols isis interface et-0/0/2.0 point-to-point
set protocols isis interface lo0.0 passive
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface et-0/0/0.0
set protocols mpls interface et-0/0/1.0
set protocols mpls interface lo0.0
set protocols rsvp interface et-0/0/0.0
set protocols rsvp interface et-0/0/1.0
set protocols rsvp interface lo0.0

PE3

set interfaces et-0/0/0 unit 0 family inet address 2.2.2.2/30
set interfaces et-0/0/0 unit 0 family iso
set interfaces et-0/0/0 unit 0 family mpls
set interfaces et-0/0/1 unit 0 family inet address 3.3.3.1/30
set interfaces et-0/0/1 unit 0 family iso
set interfaces et-0/0/1 unit 0 family mpls
set interfaces et-0/0/2 unit 0 family inet address 1.4.4.1/30
set interfaces et-0/0/2 unit 0 family iso
set interfaces et-0/0/3 vlan-tagging
set interfaces et-0/0/3 encapsulation flexible-ethernet-services
set interfaces et-0/0/3 unit 3232 encapsulation vlan-ccc
set interfaces et-0/0/3 unit 3232 vlan-id 3232
set interfaces lo0 unit 0 family inet address 7.7.7.7/32
set interfaces lo0 unit 0 family iso address 49.0000.7777.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-instances EVPN instance-type evpn-vpws
set routing-instances EVPN protocols evpn interface et-0/0/3.3232 vpws-service-id local 33
set routing-instances EVPN protocols evpn interface et-0/0/3.3232 vpws-service-id remote 32
set routing-instances EVPN interface et-0/0/3.3232
set routing-instances EVPN route-distinguisher 7.7.7.7:3232
set routing-instances EVPN vrf-target target:65400:3232
set routing-options router-id 7.7.7.7
set routing-options autonomous-system 65400
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address 7.7.7.7
set protocols bgp group EVPN family evpn signaling
set protocols bgp group EVPN neighbor 9.9.9.9
set protocols isis interface et-0/0/0.0 point-to-point
set protocols isis interface et-0/0/1.0 point-to-point
set protocols isis interface et-0/0/2.0 point-to-point
set protocols isis interface lo0.0 passive
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls label-switched-path PE1 to 5.5.5.5
set protocols mpls label-switched-path PE1 primary PE1
set protocols mpls path PE1 6.6.6.6 strict
set protocols mpls interface et-0/0/0.0
set protocols mpls interface et-0/0/1.0
set protocols mpls interface lo0.0
set protocols rsvp interface et-0/0/0.0
set protocols rsvp interface et-0/0/1.0
set protocols rsvp interface lo0.0

PE4

set interfaces et-0/0/0 unit 0 family inet address 3.3.3.2/30
set interfaces et-0/0/0 unit 0 family iso
set interfaces et-0/0/0 unit 0 family mpls
set interfaces et-0/0/1 unit 0 family inet address 4.4.4.1/30
set interfaces et-0/0/1 unit 0 family iso
set interfaces et-0/0/1 unit 0 family mpls
set interfaces et-0/0/2 unit 0 family inet address 1.5.5.1/30
set interfaces et-0/0/2 unit 0 family iso
set interfaces lo0 unit 0 family inet address 8.8.8.8/32
set interfaces lo0 unit 0 family iso address 49.0000.8888.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 8.8.8.8
set routing-options autonomous-system 65400
set protocols isis interface et-0/0/0.0 point-to-point
set protocols isis interface et-0/0/1.0 point-to-point
set protocols isis interface et-0/0/2.0 point-to-point
set protocols isis interface lo0.0 passive
set interfaces lo0 unit 0 family inet address 8.8.8.8/32
set interfaces lo0 unit 0 family iso address 49.0000.8888.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 8.8.8.8
set routing-options autonomous-system 65400
set protocols isis interface et-0/0/0.0 point-to-point
set protocols isis interface et-0/0/1.0 point-to-point
set protocols isis interface et-0/0/2.0 point-to-point
set protocols isis interface lo0.0 passive
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface et-0/0/0.0
set protocols mpls interface et-0/0/1.0
set protocols mpls interface lo0.0
set protocols rsvp interface et-0/0/0.0
set protocols rsvp interface et-0/0/1.0
set protocols rsvp interface lo0.0

RR

set interfaces et-0/0/1 unit 0 family inet address 1.2.2.2/30
set interfaces et-0/0/1 unit 0 family iso
set interfaces et-0/0/2 unit 0 family inet address 1.3.3.2/30
set interfaces et-0/0/2 unit 0 family iso
set interfaces et-0/0/3 unit 0 family inet address 1.4.4.2/30
set interfaces et-0/0/3 unit 0 family iso
set interfaces et-0/0/4 unit 0 family inet address 1.5.5.2/30
set interfaces et-0/0/4 unit 0 family iso
set interfaces lo0 unit 0 family inet address 9.9.9.9/32
set interfaces lo0 unit 0 family iso address 49.0000.9999.0000.0000.00
set routing-options resolution rib bgp.evpn.0 resolution-ribs inet.0
set routing-options router-id 9.9.9.9
set routing-options autonomous-system 65400
set protocols bgp group EVPN type internal
set protocols bgp group EVPN local-address 9.9.9.9
set protocols bgp group EVPN family evpn signaling
set protocols bgp group EVPN cluster 9.9.9.9
set protocols bgp group EVPN neighbor 5.5.5.5
set protocols bgp group EVPN neighbor 7.7.7.7
set protocols isis interface et-0/0/1.0 point-to-point
set protocols isis interface et-0/0/2.0 point-to-point
set protocols isis interface et-0/0/3.0 point-to-point
set protocols isis interface et-0/0/4.0 point-to-point
set protocols isis interface lo0.0 passive

The VPWS instance will now be up.

OSPF configured on the 2 CE devices confirming the layer 2 circuit.

Again we will use vjunos router for this lab. Aim of the lab is to direct traffic for the VPWS circuit over a certain path. Traffic from PE1 will go via PE4 and traffic from PE3 will go via PE2.

IS-IS is used as the IGP (could use OSPF if preferred) and an out of path route reflector reflects routes to the PE devices.

https://www.juniper.net/documentation/us/en/software/junos/mpls/topics/topic-map/segment-routing-lsp-configuration.html

PE1

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 1.1.1.1/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 4.4.4.2/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 1.2.2.1/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/3 vlan-tagging
set interfaces ge-0/0/3 encapsulation flexible-ethernet-services
set interfaces ge-0/0/3 unit 545 encapsulation vlan-ccc
set interfaces ge-0/0/3 unit 545 vlan-id 545
set interfaces lo0 unit 0 family inet address 5.5.5.5/32
set interfaces lo0 unit 0 family iso address 49.0000.5555.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-instances VPWS instance-type evpn-vpws
set routing-instances VPWS protocols evpn interface ge-0/0/3.545 vpws-service-id local 545
set routing-instances VPWS protocols evpn interface ge-0/0/3.545 vpws-service-id remote 546
set routing-instances VPWS interface ge-0/0/3.545
set routing-instances VPWS route-distinguisher 5.5.5.5:545
set routing-instances VPWS vrf-target target:65400:545
set routing-options router-id 5.5.5.5
set routing-options autonomous-system 65400
set protocols bgp group VPWS type internal
set protocols bgp group VPWS local-address 5.5.5.5
set protocols bgp group VPWS family evpn signaling
set protocols bgp group VPWS neighbor 9.9.9.9
set protocols isis interface ge-0/0/0.0
set protocols isis interface ge-0/0/1.0
set protocols isis interface ge-0/0/2.0
set protocols isis interface lo0.0 passive
set protocols isis source-packet-routing srgb start-label 80000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 50
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis traffic-engineering l3-unicast-topology
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0
set protocols source-packet-routing segment-list PE3 hop1 label 80080
set protocols source-packet-routing source-routing-path PE3 to 7.7.7.7
set protocols source-packet-routing source-routing-path PE3 color 100
set protocols source-packet-routing source-routing-path PE3 primary PE3

PE2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 1.1.1.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 2.2.2.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 1.3.3.1/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/3 vlan-tagging
set interfaces ge-0/0/3 encapsulation flexible-ethernet-services
set interfaces ge-0/0/3 unit 2121 encapsulation vlan-ccc
set interfaces ge-0/0/3 unit 2121 vlan-id 2121
set interfaces lo0 unit 0 family inet address 6.6.6.6/32
set interfaces lo0 unit 0 family iso address 49.0000.6666.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 6.6.6.6
set routing-options autonomous-system 65400
set protocols isis interface ge-0/0/0.0
set protocols isis interface ge-0/0/1.0
set protocols isis interface ge-0/0/2.0
set protocols isis interface lo0.0 passive
set protocols isis source-packet-routing srgb start-label 80000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 60
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0

PE3

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 2.2.2.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 3.3.3.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 1.4.4.1/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/3 vlan-tagging
set interfaces ge-0/0/3 encapsulation flexible-ethernet-services
set interfaces ge-0/0/3 unit 545 encapsulation vlan-ccc
set interfaces ge-0/0/3 unit 545 vlan-id 545
set interfaces lo0 unit 0 family inet address 7.7.7.7/32
set interfaces lo0 unit 0 family iso address 49.0000.7777.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-instances VPWS instance-type evpn-vpws
set routing-instances VPWS protocols evpn interface ge-0/0/3.545 vpws-service-id local 546
set routing-instances VPWS protocols evpn interface ge-0/0/3.545 vpws-service-id remote 545
set routing-instances VPWS interface ge-0/0/3.545
set routing-instances VPWS route-distinguisher 7.7.7.7:545
set routing-instances VPWS vrf-target target:65400:545
set routing-options router-id 7.7.7.7
set routing-options autonomous-system 65400
set protocols bgp group VPWS type internal
set protocols bgp group VPWS local-address 7.7.7.7
set protocols bgp group VPWS family evpn signaling
set protocols bgp group VPWS neighbor 9.9.9.9
set protocols isis interface ge-0/0/0.0
set protocols isis interface ge-0/0/1.0
set protocols isis interface ge-0/0/2.0
set protocols isis interface lo0.0 passive
set protocols isis source-packet-routing srgb start-label 80000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 70
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0
set protocols source-packet-routing segment-list PE1 hop1 label 80060
set protocols source-packet-routing source-routing-path PE1 to 5.5.5.5
set protocols source-packet-routing source-routing-path PE1 color 100
set protocols source-packet-routing source-routing-path PE1 primary PE1

PE4

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 3.3.3.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 4.4.4.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 1.5.5.1/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/3 vlan-tagging
set interfaces ge-0/0/3 encapsulation flexible-ethernet-services
set interfaces ge-0/0/3 unit 2121 encapsulation vlan-ccc
set interfaces ge-0/0/3 unit 2121 vlan-id 2121
set interfaces lo0 unit 0 family inet address 8.8.8.8/32
set interfaces lo0 unit 0 family iso address 49.0000.8888.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 8.8.8.8
set routing-options autonomous-system 65400
set protocols isis interface ge-0/0/0.0
set protocols isis interface ge-0/0/1.0
set protocols isis interface ge-0/0/2.0
set protocols isis interface lo0.0 passive
set protocols isis source-packet-routing srgb start-label 80000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 80
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0

RR

set interfaces ge-0/0/1 unit 0 family inet address 1.2.2.2/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/2 unit 0 family inet address 1.3.3.2/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/3 unit 0 family inet address 1.4.4.2/30
set interfaces ge-0/0/3 unit 0 family iso
set interfaces ge-0/0/4 unit 0 family inet address 1.5.5.2/30
set interfaces ge-0/0/4 unit 0 family iso
set interfaces lo0 unit 0 family inet address 9.9.9.9/32
set interfaces lo0 unit 0 family iso address 49.0000.9999.0000.0000.00
set routing-options rib inet.3
set routing-options resolution rib bgp.evpn.0 resolution-ribs inet.0
set routing-options router-id 9.9.9.9
set routing-options autonomous-system 65400
set protocols bgp group VPWS type internal
set protocols bgp group VPWS local-address 9.9.9.9
set protocols bgp group VPWS family evpn signaling
set protocols bgp group VPWS cluster 9.9.9.9
set protocols bgp group VPWS neighbor 5.5.5.5
set protocols bgp group VPWS neighbor 7.7.7.7
set protocols isis interface ge-0/0/1.0
set protocols isis interface ge-0/0/2.0
set protocols isis interface ge-0/0/3.0
set protocols isis interface ge-0/0/4.0
set protocols isis interface lo0.0 passive

If you check the routing table of either PE1 or PE3 you will find a new table called inetcolor.0 as a color has been applied to the traffic engineering.

OSPF has been configured on both CE devices confirming the VPWS circuit is up.

Rather than the vMX, vJunos router is used for this lab & a Route Reflector is thrown into the mix to make things a little more interesting. IS-IS used as the IGP. CE1 is root & CE2 & CE3 are configured as leaves so they are not able to forward traffic to each other.

https://www.juniper.net/documentation/us/en/software/junos/evpn/topics/example/example-etree-service-evpn-configuring.html

PE1

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 1.1.1.1/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 4.4.4.2/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 1.2.2.1/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/3 flexible-vlan-tagging
set interfaces ge-0/0/3 encapsulation flexible-ethernet-services
set interfaces ge-0/0/3 unit 545 encapsulation vlan-bridge
set interfaces ge-0/0/3 unit 545 vlan-id 545
set interfaces ge-0/0/3 unit 545 etree-ac-role root
set interfaces lo0 unit 0 family inet address 5.5.5.5/32
set interfaces lo0 unit 0 family iso address 49.0000.5555.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-instances ETREE instance-type evpn
set routing-instances ETREE protocols evpn interface ge-0/0/3.545
set routing-instances ETREE protocols evpn evpn-etree
set routing-instances ETREE vlan-id 545
set routing-instances ETREE interface ge-0/0/3.545
set routing-instances ETREE route-distinguisher 5.5.5.5:545
set routing-instances ETREE vrf-target target:65400:545
set routing-options router-id 5.5.5.5
set routing-options autonomous-system 65400
set protocols bgp group ETREE type internal
set protocols bgp group ETREE local-address 5.5.5.5
set protocols bgp group ETREE family evpn signaling
set protocols bgp group ETREE neighbor 9.9.9.9
set protocols isis interface ge-0/0/0.0
set protocols isis interface ge-0/0/1.0
set protocols isis interface ge-0/0/2.0
set protocols isis interface lo0.0 passive
set protocols isis source-packet-routing srgb start-label 80000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 50
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0

PE2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 1.1.1.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 2.2.2.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 1.3.3.1/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces lo0 unit 0 family inet address 6.6.6.6/32
set interfaces lo0 unit 0 family iso address 49.0000.6666.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 6.6.6.6
set routing-options autonomous-system 65400
set protocols isis interface ge-0/0/0.0
set protocols isis interface ge-0/0/1.0
set protocols isis interface ge-0/0/2.0
set protocols isis interface lo0.0 passive
set protocols isis source-packet-routing srgb start-label 80000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 60
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0

PE3

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 2.2.2.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 3.3.3.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 1.4.4.1/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/3 flexible-vlan-tagging
set interfaces ge-0/0/3 encapsulation flexible-ethernet-services
set interfaces ge-0/0/3 unit 545 encapsulation vlan-bridge
set interfaces ge-0/0/3 unit 545 vlan-id 545
set interfaces ge-0/0/3 unit 545 etree-ac-role leaf
set interfaces lo0 unit 0 family inet address 7.7.7.7/32
set interfaces lo0 unit 0 family iso address 49.0000.7777.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-instances ETREE instance-type evpn
set routing-instances ETREE protocols evpn interface ge-0/0/3.545
set routing-instances ETREE protocols evpn evpn-etree
set routing-instances ETREE vlan-id 545
set routing-instances ETREE interface ge-0/0/3.545
set routing-instances ETREE route-distinguisher 7.7.7.7:545
set routing-instances ETREE vrf-target target:65400:545
set routing-options router-id 7.7.7.7
set routing-options autonomous-system 65400
set protocols bgp group ETREE type internal
set protocols bgp group ETREE local-address 7.7.7.7
set protocols bgp group ETREE family evpn signaling
set protocols bgp group ETREE neighbor 9.9.9.9
set protocols isis interface ge-0/0/0.0
set protocols isis interface ge-0/0/1.0
set protocols isis interface ge-0/0/2.0
set protocols isis interface lo0.0 passive
set protocols isis source-packet-routing srgb start-label 80000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 70
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0

PE4

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 3.3.3.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 4.4.4.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces ge-0/0/2 unit 0 family inet address 1.5.5.1/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/3 flexible-vlan-tagging
set interfaces ge-0/0/3 encapsulation flexible-ethernet-services
set interfaces ge-0/0/3 unit 545 encapsulation vlan-bridge
set interfaces ge-0/0/3 unit 545 vlan-id 545
set interfaces ge-0/0/3 unit 545 etree-ac-role leaf
set interfaces lo0 unit 0 family inet address 8.8.8.8/32
set interfaces lo0 unit 0 family iso address 49.0000.8888.0000.0000.00
set interfaces lo0 unit 0 family mpls
set routing-instances ETREE instance-type evpn
set routing-instances ETREE protocols evpn interface ge-0/0/3.545
set routing-instances ETREE protocols evpn evpn-etree
set routing-instances ETREE vlan-id 545
set routing-instances ETREE interface ge-0/0/3.545
set routing-instances ETREE route-distinguisher 8.8.8.8:545
set routing-instances ETREE vrf-target target:65400:545
set routing-options router-id 8.8.8.8
set routing-options autonomous-system 65400
set protocols bgp group ETREE type internal
set protocols bgp group ETREE local-address 8.8.8.8
set protocols bgp group ETREE family evpn signaling
set protocols bgp group ETREE neighbor 9.9.9.9
set protocols isis interface ge-0/0/0.0
set protocols isis interface ge-0/0/1.0
set protocols isis interface ge-0/0/2.0
set protocols isis interface lo0.0 passive
set protocols isis source-packet-routing srgb start-label 80000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 80
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0

RR

set interfaces ge-0/0/1 unit 0 family inet address 1.2.2.2/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/2 unit 0 family inet address 1.3.3.2/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/3 unit 0 family inet address 1.4.4.2/30
set interfaces ge-0/0/3 unit 0 family iso
set interfaces ge-0/0/4 unit 0 family inet address 1.5.5.2/30
set interfaces ge-0/0/4 unit 0 family iso
set interfaces lo0 unit 0 family inet address 9.9.9.9/32
set interfaces lo0 unit 0 family iso address 49.0000.9999.0000.0000.00
set routing-options resolution rib bgp.evpn.0 resolution-ribs inet.0
set routing-options router-id 9.9.9.9
set routing-options autonomous-system 65400
set protocols bgp group ETREE type internal
set protocols bgp group ETREE local-address 9.9.9.9
set protocols bgp group ETREE family evpn signaling
set protocols bgp group ETREE cluster 9.9.9.9
set protocols bgp group ETREE neighbor 5.5.5.5
set protocols bgp group ETREE neighbor 7.7.7.7
set protocols bgp group ETREE neighbor 8.8.8.8
set protocols isis interface ge-0/0/1.0
set protocols isis interface ge-0/0/2.0
set protocols isis interface ge-0/0/3.0
set protocols isis interface ge-0/0/4.0
set protocols isis interface lo0.0 passive

The attachment circuits will now be up

OSPF has been configured on the CE devices. As root, CE1 will be neighbours with both CE2 & CE3

Leaves will only be neighbours with root. Output from CE2 confirms this.

Slight difference to Option A topology. Still running Segment Routing in AS65200 but AS65400 is now running RSVP. Great article linked below from Chris Parker who explains Option B in more detail (click on Network Fun Times link). OSPF configured on the 2 Cisco CE devices.

Network Fun Times Inter-AS Option B

PE1

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 vlan-tagging
set interfaces ge-0/0/0 encapsulation flexible-ethernet-services
set interfaces ge-0/0/0 unit 123 encapsulation vlan-ccc
set interfaces ge-0/0/0 unit 123 vlan-id 123
set interfaces ge-0/0/2 unit 0 family inet address 1.1.1.1/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 5.5.5.5/32
set interfaces lo0 unit 0 family iso address 49.0000.5555.5555.5555.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 5.5.5.5
set routing-options autonomous-system 65200
set protocols mpls interface ge-0/0/2.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 5.5.5.5
set protocols bgp group INTERNAL family l2vpn signaling
set protocols bgp group INTERNAL export NHS
set protocols bgp group INTERNAL neighbor 6.6.6.6
set protocols isis source-packet-routing srgb start-label 33000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 20
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/2.0 point-to-point
set protocols isis interface lo0.0 passive
set policy-options policy-statement NHS term 1 from protocol bgp
set policy-options policy-statement NHS term 1 then next-hop self
set routing-instances L2VPN instance-type l2vpn
set routing-instances L2VPN interface ge-0/0/0.123
set routing-instances L2VPN route-distinguisher 5.5.5.5:123
set routing-instances L2VPN vrf-target target:65200:123
set routing-instances L2VPN protocols l2vpn encapsulation-type ethernet-vlan
set routing-instances L2VPN protocols l2vpn site L2VPN site-identifier 1
set routing-instances L2VPN protocols l2vpn site L2VPN interface ge-0/0/0.123

P1

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 1.1.1.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 2.2.2.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 6.6.6.6/32
set interfaces lo0 unit 0 family iso address 49.0000.6666.6666.6666.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 6.6.6.6
set routing-options autonomous-system 65200
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 6.6.6.6
set protocols bgp group INTERNAL family l2vpn signaling
set protocols bgp group INTERNAL export NHS
set protocols bgp group INTERNAL cluster 6.6.6.6
set protocols bgp group INTERNAL neighbor 5.5.5.5
set protocols bgp group INTERNAL neighbor 33.33.33.33
set protocols isis source-packet-routing srgb start-label 33000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 25
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface lo0.0 passive
set policy-options policy-statement NHS term 1 from protocol bgp
set policy-options policy-statement NHS term 1 then next-hop self

ASBR1

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 2.2.2.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 10.33.33.1/30
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 33.33.33.33/32
set interfaces lo0 unit 0 family iso address 49.0000.3333.3333.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 33.33.33.33
set routing-options autonomous-system 65200
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface lo0.0
set protocols mpls interface ge-0/0/1.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 33.33.33.33
set protocols bgp group INTERNAL family l2vpn signaling
set protocols bgp group INTERNAL export NHS
set protocols bgp group INTERNAL neighbor 6.6.6.6
set protocols bgp group AS65400 type external
set protocols bgp group AS65400 family l2vpn signaling
set protocols bgp group AS65400 peer-as 65400
set protocols bgp group AS65400 neighbor 10.33.33.2
set protocols isis source-packet-routing srgb start-label 33000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 30
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface lo0.0 passive
set policy-options policy-statement NHS term 1 from protocol bgp
set policy-options policy-statement NHS term 1 then next-hop self

ASBR2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 10.33.33.2/30
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 4.4.4.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 7.7.7.7/32
set interfaces lo0 unit 0 family iso address 49.0000.7777.7777.7777.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 7.7.7.7
set routing-options autonomous-system 65400
set routing-options resolution
set protocols rsvp interface ge-0/0/1.0
set protocols rsvp interface lo0.0
set protocols mpls label-switched-path PE2 to 8.8.8.8
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0
set protocols mpls interface ge-0/0/0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 7.7.7.7
set protocols bgp group INTERNAL family l2vpn signaling
set protocols bgp group INTERNAL export NHS
set protocols bgp group INTERNAL neighbor 9.9.9.9
set protocols bgp group AS65200 type external
set protocols bgp group AS65200 family l2vpn signaling
set protocols bgp group AS65200 peer-as 65200
set protocols bgp group AS65200 neighbor 10.33.33.1
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface lo0.0 passive
set policy-options policy-statement NHS term 1 from protocol bgp
set policy-options policy-statement NHS term 1 then next-hop self

P2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 4.4.4.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 5.5.5.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces fxp0 unit 0 family inet dhcp vendor-id Juniper-vmx-VM67309BAAF3
set interfaces lo0 unit 0 family inet address 9.9.9.9/32
set interfaces lo0 unit 0 family iso address 49.0000.9999.9999.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 9.9.9.9
set routing-options autonomous-system 65400
set routing-options resolution rib bgp.l2vpn.0 resolution-ribs inet.0
set protocols rsvp interface ge-0/0/0.0
set protocols rsvp interface ge-0/0/1.0
set protocols rsvp interface lo0.0
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 9.9.9.9
set protocols bgp group INTERNAL family l2vpn signaling
set protocols bgp group INTERNAL cluster 9.9.9.9
set protocols bgp group INTERNAL neighbor 7.7.7.7
set protocols bgp group INTERNAL neighbor 8.8.8.8
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface lo0.0 passive

PE2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 5.5.5.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 vlan-tagging
set interfaces ge-0/0/1 encapsulation flexible-ethernet-services
set interfaces ge-0/0/1 unit 123 encapsulation vlan-ccc
set interfaces ge-0/0/1 unit 123 vlan-id 123
set interfaces lo0 unit 0 family inet address 8.8.8.8/32
set interfaces lo0 unit 0 family iso address 49.0000.8888.8888.8888.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 8.8.8.8
set routing-options autonomous-system 65400
set protocols rsvp interface ge-0/0/0.0
set protocols rsvp interface lo0.0
set protocols mpls label-switched-path ASBR2 to 7.7.7.7
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 8.8.8.8
set protocols bgp group INTERNAL family l2vpn signaling
set protocols bgp group INTERNAL export NHS
set protocols bgp group INTERNAL neighbor 9.9.9.9
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface lo0.0 passive
set policy-options policy-statement NHS term 1 from protocol bgp
set policy-options policy-statement NHS term 1 then next-hop self
set routing-instances L2VPN instance-type l2vpn
set routing-instances L2VPN interface ge-0/0/1.123
set routing-instances L2VPN route-distinguisher 8.8.8.8:123
set routing-instances L2VPN vrf-target target:65200:123
set routing-instances L2VPN protocols l2vpn encapsulation-type ethernet-vlan
set routing-instances L2VPN protocols l2vpn site L2VPN site-identifier 2
set routing-instances L2VPN protocols l2vpn site L2VPN interface ge-0/0/1.123

OSPF is now up on the 2 Cisco CE devices, confirming the layer 2 VPN is established.

This topology uses option A and, as usual, 2 Cisco devices as CEs. BGP is used for routing between PEs & CEs. AS65200 is running Segment Routing and AS65400 LDP.

https://www.juniper.net/documentation/us/en/software/junos/vpn-l3/topics/topic-map/l3-vpns-interprovider.html#:~:text=Interprovider%20Layer%203%20VPN%20Option%20A%20provides%20interprovider%20VRF%2Dto,is%20the%20least%20scalable%20solution.

PE1

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24
set interfaces ge-0/0/2 unit 0 family inet address 1.1.1.1/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 5.5.5.5/32
set interfaces lo0 unit 0 family iso address 49.0000.5555.5555.5555.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 5.5.5.5
set routing-options autonomous-system 65200
set protocols mpls interface ge-0/0/2.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 5.5.5.5
set protocols bgp group INTERNAL family inet-vpn unicast
set protocols bgp group INTERNAL export NHS
set protocols bgp group INTERNAL neighbor 6.6.6.6
set protocols isis source-packet-routing srgb start-label 33000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 20
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/2.0 point-to-point
set protocols isis interface lo0.0 passive
set policy-options policy-statement NHS term 1 from protocol bgp
set policy-options policy-statement NHS term 1 then next-hop self
set routing-instances L3VPN instance-type vrf
set routing-instances L3VPN interface ge-0/0/0.0
set routing-instances L3VPN route-distinguisher 5.5.5.5:1
set routing-instances L3VPN vrf-target target:65200:1
set routing-instances L3VPN vrf-table-label
set routing-instances L3VPN protocols bgp group L3VPN type external
set routing-instances L3VPN protocols bgp group L3VPN as-override
set routing-instances L3VPN protocols bgp group L3VPN neighbor 10.1.1.254 peer-as 65444

P1

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 1.1.1.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 2.2.2.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 6.6.6.6/32
set interfaces lo0 unit 0 family iso address 49.0000.6666.6666.6666.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 6.6.6.6
set routing-options autonomous-system 65200
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 6.6.6.6
set protocols bgp group INTERNAL family inet-vpn unicast
set protocols bgp group INTERNAL export NHS
set protocols bgp group INTERNAL cluster 6.6.6.6
set protocols bgp group INTERNAL neighbor 5.5.5.5
set protocols bgp group INTERNAL neighbor 33.33.33.33
set protocols isis source-packet-routing srgb start-label 33000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 25
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface lo0.0 passive
set policy-options policy-statement NHS term 1 from protocol bgp
set policy-options policy-statement NHS term 1 then next-hop self

ASBR1

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 2.2.2.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 10.33.33.1/30
set interfaces lo0 unit 0 family inet address 33.33.33.33/32
set interfaces lo0 unit 0 family iso address 49.0000.3333.3333.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 33.33.33.33
set routing-options autonomous-system 65200
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 33.33.33.33
set protocols bgp group INTERNAL family inet-vpn unicast
set protocols bgp group INTERNAL export NHS
set protocols bgp group INTERNAL neighbor 6.6.6.6
set protocols isis source-packet-routing srgb start-label 33000
set protocols isis source-packet-routing srgb index-range 1000
set protocols isis source-packet-routing node-segment ipv4-index 30
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface lo0.0 passive
set policy-options policy-statement NHS term 1 from protocol bgp
set policy-options policy-statement NHS term 1 then next-hop self
set routing-instances L3VPN instance-type vrf
set routing-instances L3VPN interface ge-0/0/1.0
set routing-instances L3VPN route-distinguisher 33.33.33.33:1
set routing-instances L3VPN vrf-target target:65200:1
set routing-instances L3VPN protocols bgp group AS65400 type external
set routing-instances L3VPN protocols bgp group AS65400 neighbor 10.33.33.2 peer-as 65400

ASBR2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 10.33.33.2/30
set interfaces ge-0/0/1 unit 0 family inet address 4.4.4.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 7.7.7.7/32
set interfaces lo0 unit 0 family iso address 49.0000.7777.7777.7777.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 7.7.7.7
set routing-options autonomous-system 65400
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 7.7.7.7
set protocols bgp group INTERNAL family inet-vpn unicast
set protocols bgp group INTERNAL export NHS
set protocols bgp group INTERNAL neighbor 9.9.9.9
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface lo0.0 passive
set protocols ldp interface ge-0/0/1.0
set protocols ldp interface lo0.0
set policy-options policy-statement NHS term 1 from protocol bgp
set policy-options policy-statement NHS term 1 then next-hop self
set routing-instances L3VPN instance-type vrf
set routing-instances L3VPN interface ge-0/0/0.0
set routing-instances L3VPN route-distinguisher 7.7.7.7:1
set routing-instances L3VPN vrf-target target:65200:1
set routing-instances L3VPN protocols bgp group AS65200 type external
set routing-instances L3VPN protocols bgp group AS65200 neighbor 10.33.33.1 peer-as 65200

P2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 4.4.4.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 5.5.5.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 9.9.9.9/32
set interfaces lo0 unit 0 family iso address 49.0000.9999.9999.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 9.9.9.9
set routing-options autonomous-system 65400
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 9.9.9.9
set protocols bgp group INTERNAL family inet-vpn unicast
set protocols bgp group INTERNAL export NHS
set protocols bgp group INTERNAL cluster 9.9.9.9
set protocols bgp group INTERNAL neighbor 7.7.7.7
set protocols bgp group INTERNAL neighbor 8.8.8.8
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface lo0.0 passive
set protocols ldp interface ge-0/0/0.0
set protocols ldp interface ge-0/0/1.0
set protocols ldp interface lo0.0
set policy-options policy-statement NHS term 1 from protocol bgp
set policy-options policy-statement NHS term 1 then next-hop self

PE2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 5.5.5.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 11.1.1.1/24
set interfaces lo0 unit 0 family inet address 8.8.8.8/32
set interfaces lo0 unit 0 family iso address 49.0000.8888.8888.8888.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 8.8.8.8
set routing-options autonomous-system 65400
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 8.8.8.8
set protocols bgp group INTERNAL family inet-vpn unicast
set protocols bgp group INTERNAL export NHS
set protocols bgp group INTERNAL neighbor 9.9.9.9
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface lo0.0 passive
set protocols ldp interface ge-0/0/0.0
set protocols ldp interface lo0.0
set policy-options policy-statement NHS term 1 from protocol bgp
set policy-options policy-statement NHS term 1 then next-hop self
set routing-instances L3VPN instance-type vrf
set routing-instances L3VPN interface ge-0/0/1.0
set routing-instances L3VPN route-distinguisher 8.8.8.8:1
set routing-instances L3VPN vrf-target target:65200:1
set routing-instances L3VPN vrf-table-label
set routing-instances L3VPN protocols bgp group L3VPN type external
set routing-instances L3VPN protocols bgp group L3VPN as-override
set routing-instances L3VPN protocols bgp group L3VPN neighbor 11.1.1.254 peer-as 65444

The 2 CE devices will now have IP connectivity and you can see the respective routes have been learnt on both sides.

This lab is slightly different to the other Carrier of Carrier lab where LDP was used in each AS. In this lab, AS65200 is using LDP, AS65400 RSVP & AS65600 Segment Routing. 2 Cisco vIOS devices used as CE devices

https://www.juniper.net/documentation/us/en/software/junos/vpn-l3/topics/topic-map/l3-vpns-carrier-carrier.html

PE1

set interfaces ge-0/0/0 vlan-tagging
set interfaces ge-0/0/0 encapsulation vlan-vpls
set interfaces ge-0/0/0 unit 909 encapsulation vlan-vpls
set interfaces ge-0/0/0 unit 909 vlan-id 909
set interfaces ge-0/0/0 unit 909 family vpls
set interfaces ge-0/0/2 unit 0 family inet address 1.1.1.1/30
set interfaces ge-0/0/2 unit 0 family iso
set interfaces ge-0/0/2 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 5.5.5.5/32
set interfaces lo0 unit 0 family iso address 49.0000.5555.5555.5555.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 5.5.5.5
set routing-options autonomous-system 65200
set protocols mpls interface ge-0/0/2.0
set protocols mpls interface lo0.0
set protocols bgp group AS65600 type external
set protocols bgp group AS65600 multihop
set protocols bgp group AS65600 local-address 5.5.5.5
set protocols bgp group AS65600 family evpn signaling
set protocols bgp group AS65600 peer-as 65600
set protocols bgp group AS65600 neighbor 11.11.11.11
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 5.5.5.5
set protocols bgp group INTERNAL family inet labeled-unicast resolve-vpn
set protocols bgp group INTERNAL neighbor 6.6.6.6
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/2.0 point-to-point
set protocols isis interface lo0.0 passive
set protocols ldp interface ge-0/0/2.0
set protocols ldp interface lo0.0
set routing-instances vpls instance-type evpn
set routing-instances vpls interface ge-0/0/0.909
set routing-instances vpls route-distinguisher 5.5.5.5:909
set routing-instances vpls vrf-target target:65200:909
set routing-instances vpls protocols vpls site-range 1000
set routing-instances vpls protocols vpls no-tunnel-services
set routing-instances vpls protocols vpls site vpls-1 site-identifier 1
set routing-instances vpls protocols vpls site vpls-1 interface ge-0/0/0.909
set routing-instances vpls protocols evpn interface ge-0/0/0.909

ASBR1

set interfaces ge-0/0/0 unit 0 family inet address 1.1.1.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 2.2.2.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 6.6.6.6/32
set interfaces lo0 unit 0 family iso address 49.0000.6666.6666.6666.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 6.6.6.6
set routing-options autonomous-system 65200
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 6.6.6.6
set protocols bgp group INTERNAL family inet labeled-unicast
set protocols bgp group INTERNAL neighbor 5.5.5.5
set protocols bgp group AS65400 type external
set protocols bgp group AS65400 family inet labeled-unicast
set protocols bgp group AS65400 export PE1_LOOPBACK
set protocols bgp group AS65400 peer-as 65400
set protocols bgp group AS65400 neighbor 2.2.2.2
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface lo0.0 passive
set protocols ldp interface ge-0/0/0.0
set protocols ldp interface lo0.0
set policy-options policy-statement PE1_LOOPBACK from route-filter 5.5.5.5/32 exact
set policy-options policy-statement PE1_LOOPBACK then accept

CoC ASBR1

set interfaces ge-0/0/0 unit 0 family inet address 2.2.2.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 3.3.3.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 7.7.7.7/32
set interfaces lo0 unit 0 family iso address 49.0000.7777.7777.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 7.7.7.7
set routing-options autonomous-system 65400
set protocols rsvp interface ge-0/0/1.0
set protocols rsvp interface lo0.0
set protocols mpls label-switched-path ASBR2 to 9.9.9.9
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0
set protocols bgp group AS65200 type external
set protocols bgp group AS65200 family inet labeled-unicast
set protocols bgp group AS65200 peer-as 65200
set protocols bgp group AS65200 neighbor 2.2.2.1
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 7.7.7.7
set protocols bgp group INTERNAL family inet labeled-unicast
set protocols bgp group INTERNAL neighbor 8.8.8.8
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface lo0.0 passive

CoC Core

set interfaces ge-0/0/0 unit 0 family inet address 3.3.3.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 4.4.4.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 8.8.8.8/32
set interfaces lo0 unit 0 family iso address 49.0000.8888.8888.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 8.8.8.8
set routing-options autonomous-system 65400
set protocols rsvp interface ge-0/0/0.0
set protocols rsvp interface ge-0/0/1.0
set protocols rsvp interface lo0.0
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 8.8.8.8
set protocols bgp group INTERNAL family inet labeled-unicast
set protocols bgp group INTERNAL cluster 8.8.8.8
set protocols bgp group INTERNAL neighbor 9.9.9.9
set protocols bgp group INTERNAL neighbor 7.7.7.7
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface lo0.0 passive

CoC ASBR2

set interfaces ge-0/0/0 unit 0 family inet address 4.4.4.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 5.5.5.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 9.9.9.9/32
set interfaces lo0 unit 0 family iso address 49.0000.9999.9999.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 9.9.9.9
set routing-options autonomous-system 65400
set protocols rsvp interface ge-0/0/0.0
set protocols rsvp interface lo0.0
set protocols mpls label-switched-path ASBR1 to 7.7.7.7
set protocols mpls interface ge-0/0/0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 9.9.9.9
set protocols bgp group INTERNAL family inet labeled-unicast
set protocols bgp group INTERNAL neighbor 8.8.8.8
set protocols bgp group AS65600 type external
set protocols bgp group AS65600 family inet labeled-unicast
set protocols bgp group AS65600 peer-as 65600
set protocols bgp group AS65600 neighbor 5.5.5.2
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface lo0.0 passive

ASBR2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 5.5.5.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 unit 0 family inet address 6.6.6.1/30
set interfaces ge-0/0/1 unit 0 family iso
set interfaces ge-0/0/1 unit 0 family mpls
set interfaces lo0 unit 0 family inet address 10.10.10.10/32
set interfaces lo0 unit 0 family iso address 49.0000.1010.1010.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 10.10.10.10
set routing-options autonomous-system 65600
set protocols mpls interface ge-0/0/1.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 10.10.10.10
set protocols bgp group INTERNAL family inet labeled-unicast
set protocols bgp group INTERNAL neighbor 11.11.11.11
set protocols bgp group AS65400 type external
set protocols bgp group AS65400 family inet labeled-unicast
set protocols bgp group AS65400 export PE2_LOOPBACK
set protocols bgp group AS65400 peer-as 65400
set protocols bgp group AS65400 neighbor 5.5.5.1
set protocols isis source-packet-routing srgb start-label 55000
set protocols isis source-packet-routing srgb index-range 10000
set protocols isis source-packet-routing node-segment ipv4-index 1000
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/1.0 point-to-point
set protocols isis interface lo0.0 passive
set policy-options policy-statement PE2_LOOPBACK from route-filter 11.11.11.11/32 exact
set policy-options policy-statement PE2_LOOPBACK then accept

PE2

set chassis network-services enhanced-ip
set interfaces ge-0/0/0 unit 0 family inet address 6.6.6.2/30
set interfaces ge-0/0/0 unit 0 family iso
set interfaces ge-0/0/0 unit 0 family mpls
set interfaces ge-0/0/1 vlan-tagging
set interfaces ge-0/0/1 encapsulation vlan-vpls
set interfaces ge-0/0/1 unit 909 encapsulation vlan-vpls
set interfaces ge-0/0/1 unit 909 vlan-id 909
set interfaces ge-0/0/1 unit 909 family vpls
set interfaces lo0 unit 0 family inet address 11.11.11.11/32
set interfaces lo0 unit 0 family iso address 49.0000.1111.1111.0000.00
set interfaces lo0 unit 0 family mpls
set routing-options router-id 11.11.11.11
set routing-options autonomous-system 65600
set protocols mpls interface ge-0/0/0.0
set protocols mpls interface lo0.0
set protocols bgp group INTERNAL type internal
set protocols bgp group INTERNAL local-address 11.11.11.11
set protocols bgp group INTERNAL family inet labeled-unicast resolve-vpn
set protocols bgp group INTERNAL neighbor 10.10.10.10
set protocols bgp group AS65200 multihop
set protocols bgp group AS65200 local-address 11.11.11.11
set protocols bgp group AS65200 family evpn signaling
set protocols bgp group AS65200 peer-as 65200
set protocols bgp group AS65200 neighbor 5.5.5.5
set protocols isis source-packet-routing srgb start-label 55000
set protocols isis source-packet-routing srgb index-range 10000
set protocols isis source-packet-routing node-segment ipv4-index 1100
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only
set protocols isis interface ge-0/0/0.0 point-to-point
set protocols isis interface lo0.0 passive
set routing-instances vpls instance-type evpn
set routing-instances vpls interface ge-0/0/1.909
set routing-instances vpls route-distinguisher 11.11.11.11:909
set routing-instances vpls vrf-target target:65200:909
set routing-instances vpls protocols vpls site-range 1000
set routing-instances vpls protocols vpls no-tunnel-services
set routing-instances vpls protocols vpls site vpls-1 site-identifier 1
set routing-instances vpls protocols vpls site vpls-1 interface ge-0/0/1.909
set routing-instances vpls protocols evpn interface ge-0/0/1.909

The VPLS circuit will now be up and OSPF has been configured to the 2 Cisco CE devices to confirm this.
